SPCC Swing Barrier Turnstile Security Systems Access Control Turnstile Gate

SPCC Swing Barrier Turnstile Security Systems Access Control Turnstile Gate

SPCC Swing Barrier Turnstile

Dry contact Swing Barrier Turnstile

SPCC Access Control Turnstile Gate

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
1 Year
Swing Barrier
Work Environment:
Power Supply:
Dry Contact
Payment & Shipping Terms
Product Description

SPCC Swing Barrier Turnstile Turnstile Access Control Security Systems

The reliable and efficient swing barrier gate--AG-TX38152502 ! These automated gates are the perfect solution for controlling the flow of pedestrian traffic. With their sleek design and advanced technology, they can be seamlessly integrated into any entrance or exit point.

Our swing barrier gates are made from high-quality materials, ensuring optimum durability and long-lasting performance. They feature sensor-controlled entry and exits, guaranteeing a smooth and hassle-free experience for users. These gates are also equipped with safety features that prevent unauthorized entry and ensure the safety of all users.

With our swing barrier gate, you can enjoy a smooth, swift, and convenient entrance and exit system for your building or establishment. Anti-tailgating and anti-piggybacking features ensure that only authorized persons are granted access. This reduces the risk of security breaches and ensures the safety of all employees and visitors.

Choose our swing barrier gate for a sophisticated and reliable access control system. With its advanced features and impressive design, it's the perfect solution for your entrance and exit needs.

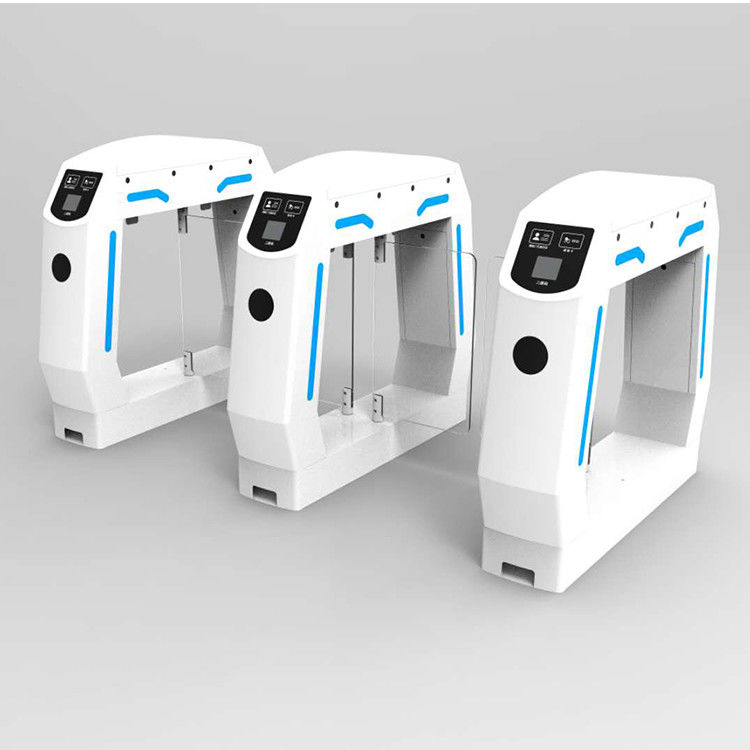

SPCC Swing Barrier Turnstile Security Systems Access Control Turnstile Gate 0


Product Size 1200*250*1050mm
Material SPCC
Thickness 1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm
Sensor 4 pairs of active infrared intrusion detector
Reaction Time 0.2S
Throughput Rate 20~25p/m
Working Temperature ·-20~+70
Driving Voltage DC24V
Power Input AC110~220V±10%
Motor Brushless DC Motor
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
Back up power Supercapacitor(12V/3A)



1. This swing barrier gate performs a fault self-check as soon as it is activated, and if any problems are found, a warning siren sounds. When the electricity is turned on and off, the turnstile opens and closes on its own.
2, Peripherals have control signals like buttons, remote controllers or readers which permit control access can work with the gate.
3, Turnstile Arm Return to Initial Position: After a visitor passes through the swing turnstile gate, the turnstile arm automatically returns to its initial position. If no access is made within the specified period, the passing authority will be removed by the system.
4, A high-luminance LED accessibility indicator is present on the gate.

5, There is an audible and visible alert on this swing barrier gate turnstile. The LED is blue when the gate is in standby mode.
6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.
7, The swing barrier gate system is compatible with  a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.



SPCC Swing Barrier Turnstile Security Systems Access Control Turnstile Gate 1


Customization Available

We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always get in touch with our sales team.
