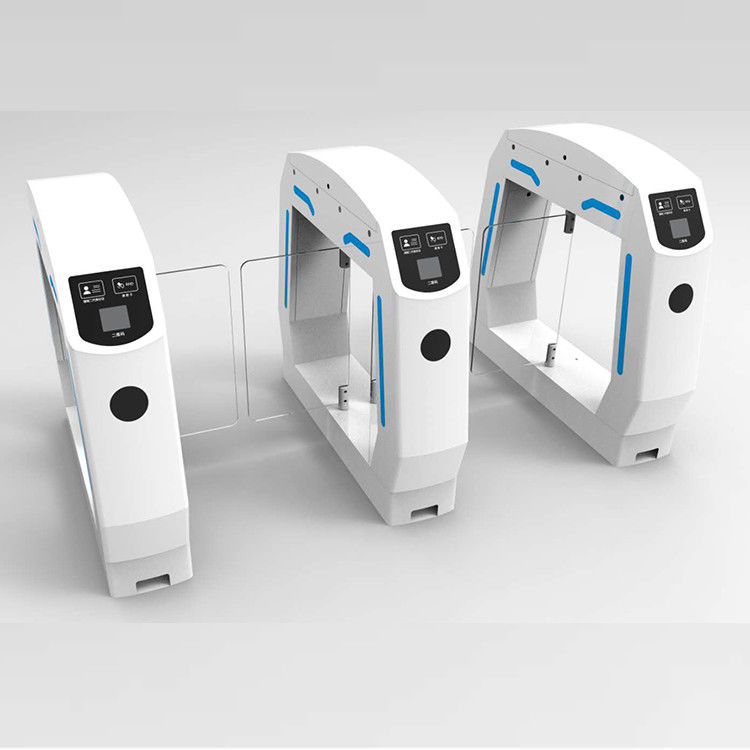

High Security Swing Barrier Turnstile SPCC Material Low Maintenance

High Security Swing Barrier Turnstile SPCC Material Low Maintenance

High Security Swing Barrier Turnstile

1050mm Swing Barrier Turnstile

SPCC Material Swing Barrier Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Optical Swing Barrier Gate
1 Year
Swing Barrier
Power Supply:
RS232,Dry Contact
High Speed Gate
Payment & Shipping Terms
Product Description

SPCC Swing Barrier Turnstile: High Security & Low Maintenance

The optical swing barrier gate AG-TX38152502 is a state-of-the-art security solution designed to ensure controlled access to restricted areas with high foot traffic. Made of durable materials, this gate is a highly effective security measure that can prevent unauthorized entry, theft, and vandalism. Its sleek and modern design makes it an attractive addition to any facility.

Equipped with optical sensors, the barrier gate detects the passage of individuals and opens and closes accordingly. The sensors ensure that only one person can pass at a time, which enhances security and reduces the risk of tailgating. The gate is easy to install and highly customizable, with different options for access control such as proximity cards, biometric authentication, and barcodes.

The optical swing barrier gate is ideal for a wide range of applications, including airports, banks, government buildings, and public transport stations. It provides superior security and enables administrators to monitor access to various areas of their facility effectively. With its reliable performance, low maintenance requirements, and stylish appearance, this gate is an excellent investment for any organization looking to enhance their security measures.

High Security Swing Barrier Turnstile SPCC Material Low Maintenance 0


Product Size 1200*250*1050mm
Material SPCC
Thickness 1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm
Sensor 4 pairs of active infrared intrusion detector
Reaction Time 0.2S
Throughput Rate 20~25p/m
Working Temperature ·-20~+70
Driving Voltage DC24V
Power Input AC110~220V±10%
Motor Brushless DC Motor
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
Back up power Supercapacitor(12V/3A)



1. This swing barrier gate performs a fault self-check as soon as it is activated, and if any problems are found, a warning siren sounds. When the electricity is turned on and off, the turnstile opens and closes on its own.
2, Peripherals have control signals like buttons, remote controllers or readers which permit control access can work with the gate.
3, Turnstile Arm Return to Initial Position: After a visitor passes through the swing turnstile gate, the turnstile arm automatically returns to its initial position. If no access is made within the specified period, the passing authority will be removed by the system.
4, A high-luminance LED accessibility indicator is present on the gate.

5, There is an audible and visible alert on this swing barrier gate turnstile. The LED is blue when the gate is in standby mode.
6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.
7, The swing barrier gate system is compatible with  a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.



High Security Swing Barrier Turnstile SPCC Material Low Maintenance 1


Customization Available

We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always get in touch with our sales team.
