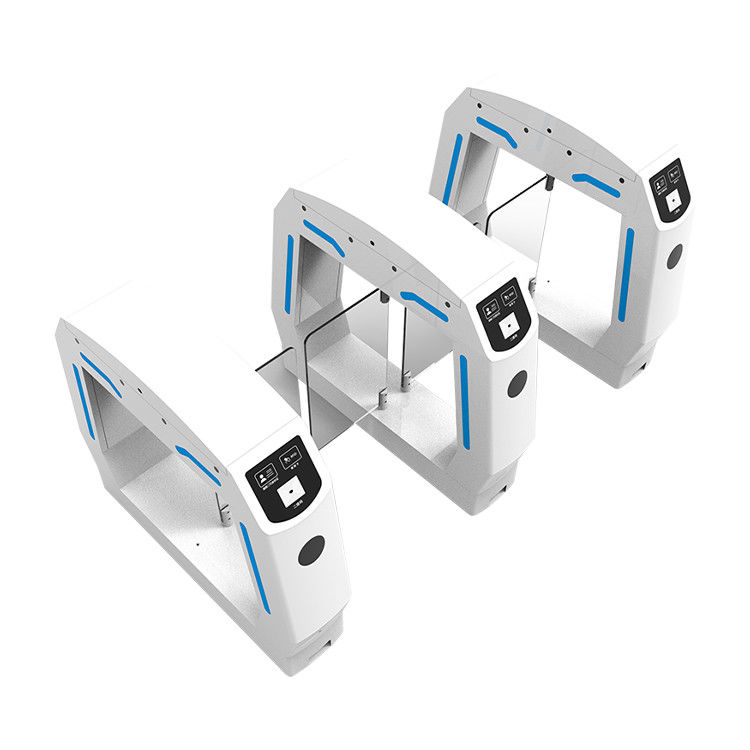

AG-TX38152502 Swing Turnstile Gate SPCC Material Single / Bi-Directional Passages

AG-TX38152502 Swing Turnstile Gate SPCC Material Single / Bi-Directional Passages

Single Directional Swing Turnstile Gate

Bi-Directional Swing Turnstile Gate

35 person /min Swing Turnstile Gate

Place of Origin:

China

Brand Name:

HPT

Certification:

CE; FCC;ISO

Model Number:

AG-TX38152502

Contact Us

Request A Quote
Product Details
Material:
SPCC
Product Name:
Optical Swing Barrier Gate
Warranty:
1 Year
Type:
Swing Barrier
Dimension:
1200*250*1050mm
Power Supply:
AC100-240V
Color:
White
Communication:
RS232,Dry Contact
Passing Speed:
35 Person /min
Payment & Shipping Terms
Product Description

Swing Barrier Turnstile AG-TX38152502: SPCC Material, Single/Bi-Directional Passages

Looking for a cutting-edge way to enhance the security at your facility or venue? Consider our remarkable optical swing barrier gate --HPT AG-TX38152502.  Designed for top-tier access control, the optical swing barrier gate is an advanced pedestrian control device that helps to ensure a secure, orderly flow of people at any location. Ideal for use in corporate offices, museums, stadiums, transit stations, and more, it offers unbeatable performance and unparalleled reliability.

With its sleek, modern design and high-tech capabilities, the optical swing barrier gate delivers both style and substance. Its advanced optical technology ensures rapid and accurate identification of valid credentials, while its durable construction and intuitive user interface make it easy to maintain and operate.

Whether you're looking to upgrade an existing security system or to install a brand-new one, the optical swing barrier gate is the perfect solution. It's the ultimate in access control, and it's backed by a team of experts who are committed to your satisfaction and peace of mind.

So why wait? Invest in the power of the optical swing barrier gate today and experience the ultimate in security and control!

AG-TX38152502 Swing Turnstile Gate SPCC Material Single / Bi-Directional Passages 0

Specification

Product Size 1200*250*1050mm
Material SPCC
Thickness 1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm
Sensor 4 pairs of active infrared intrusion detector
Reaction Time 0.2S
Throughput Rate 20~25p/m
Working Temperature ·-20~+70
Driving Voltage DC24V
Power Input AC110~220V±10%
Motor Brushless DC Motor
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
Back up power Supercapacitor(12V/3A)



Functionality

1. This swing barrier gate performs a fault self-check as soon as it is activated, and if any problems are found, a warning siren sounds. When the electricity is turned on and off, the turnstile opens and closes on its own.
2, Peripherals have control signals like buttons, remote controllers or readers which permit control access can work with the gate.
3, Turnstile Arm Return to Initial Position: After a visitor passes through the swing turnstile gate, the turnstile arm automatically returns to its initial position. If no access is made within the specified period, the passing authority will be removed by the system.
4, A high-luminance LED accessibility indicator is present on the gate.

5, There is an audible and visible alert on this swing barrier gate turnstile. The LED is blue when the gate is in standby mode.
6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.
7, The swing barrier gate system is compatible with  a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.



Projects

AG-TX38152502 Swing Turnstile Gate SPCC Material Single / Bi-Directional Passages 1



Customization Available

We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always get in touch with our sales team.
